Hikvision Swing Barriers
User-friendly access comfort, high throughput capacity and sophisticated optics: sensor barriers offer outstanding solutions for controlled physical access. Integrated light barriers per lane monitor the interior, protect against unauthorized entry and ensure convenient contact-free access.
Pillars in which card readers and release displays can be installed are mounted on the front and rear of the barrier body
Hikvision DS-K3B411SX Value Series Swing Gate
Capacity : 20 ~ 60 persons per minute
- 6 pairs of IR light detectors: Permissions validation and anti-tailgating
- LED light indicates passing direction
- Audible and visual nipping alarm: The barrier will stop working for a period of time when detecting obstruction when open/close barrier
- Self-detection, Self-diagnostics, and automatic alarm
- Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
- Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
- Barrier will automatically open when powering down
| System | |
| Motor | Brush motor |
| MCBF | ＞3 million times |
| Interface | |
| Network Interface | 1 |
| Lock Control | 2 |
| Alarm Input | 2 |
| Alarm Output | 2 |
| RS-485 | 4 |
| RS-232 | 6 |
| General | |
| Throughput | 20 to 60 persons per minute |
| The actual throughput is affected by the person passing rate and passing method. | |
| IR Light Detectors | 6 pairs |
| Lane Width | 550 mm to 1100 mm (21.65″ to 43.31″) |
| Barrier Material | Stainless steel pipe; Acrylic glass |
| Pedestal Material | SUS304 stainless steel |
| Working Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Working Humidity | 10% to 95% (No Condensing) |
| Power Supply | 100 to 240 VAC; 50 to 60 Hz |
| Configuration | |
| Lane Width | 600||650||750||900||1100 |
| Pedestal Length | 1200mm |
| Module Selection | NO |
| Pedestal Width | 200mm |
| Wall Distance | 60mm |
| Base | YES |
| Barrier Material | Acrylic glass||Stainless steel pipe |
| Authentication Mode | Card, Face, Fingerprint, QR code |
| Recommended Width | 650 |
Hikvision DS-K3B801SX Ultra Series Swing Barrier
Capacity : 30 ~ 60 persons per minute
- TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak
- Permissions validation and anti-tailgating
- Bidirectional (Entering/Exiting) lane:The barrier opening and closing speed can be configured according to the visitors flow
- The barrier will be locked or stop working when people are nipped
- Self-detection, Self-diagnostics, and automatic alarm
- Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, and overstay
- Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
| System | Swing Gate Barrier |
| Motor | Servo motor |
| MCBF | ＞6 million times |
| Interface | |
| Network Interface | 1 |
| Lock Control | 2 |
| Alarm Input | 4 |
| Alarm Output | 2 |
| RS-485 | 4 |
| RS-232 | 4 |
| General | |
| Throughput | 30 to 60 persons per minute |
| The actual throughput is affected by the person passing rate and passing method. | |
| IR Light Detectors | 6 pairs |
| Lane Width | 550 mm to 1100 mm (21.65″ to 43.31″) |
| Barrier Material | Stainless steel pipe; Acrylic glass |
| Pedestal Material | SUS304 stainless steel |
| Working Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Working Humidity | 10% to 95% (No Condensing) |
| Power Supply | 100 to 240 VAC; 50 to 60 Hz |
| Configuration | |
| Lane Width | 600||650||750||900||1100 |
| Pedestal Length | 1500mm |
| Module Selection | NO |
| Pedestal Width | 175mm |
| Wall Distance | 50mm |
| Base | YES |
| Barrier Material | Acrylic glass||Stainless steel pipe |
| Authentication Mode | Card, Face, Fingerprint, QR code |
| Recommended Width | 650 |

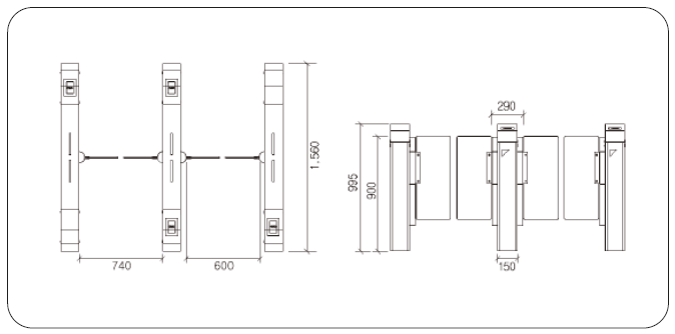

Flap Gate : Flap Slim (FG-F)
Capacity : 40 ~ 60 persons per minute
| TECHNICAL DATA | |
| Opening / Closing Time | 0.5 ~ 1 sec. |
| Motor | Stepping Motor |
| Power | AC 220/240V, 50/60Hz, 150W |
| Operating Temperature | -15°C ~ +45°C |
| Certification | CE certified |
| Operation | Swing |
| Glass Height (mm) | 700 ~ 1,500 |
| Dimensions (mm) | Housing Lenght : 1,560 |
| Finish | Housing Height : 995 |
| Housing Width : 150 | |
| Top : Painted Steel | |
| Front : Painted Steel | |
| Side : Paint Steel & Tempered Glass | |
| Wings : Tempered Glass or Polycarbonate |
